OMEG ECO POTENTIOMETER DATA

This page provides the electrical and mechanical specification for the ECO product range of Omeg rotary potentiometers.

The electrical specification is split into unique and common attributes to highlight the difference between the ECO, P16 and P20 potentiometer.

Go to ECO Potentiometer Dimensions for the potentiometer bush and spindle dimensions; and
go to ECO Potentiometer Types to select the unswitched model and terminal arrangement to suit your requirements.

ECO MECHANICAL SPECIFICATION

The following two options are also available on certain models:-

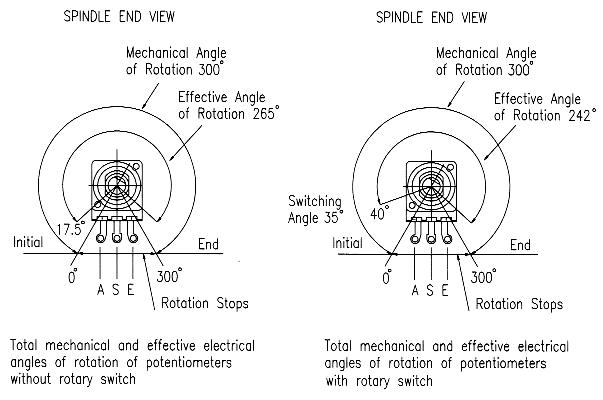

ECO angle of rotation - without and with a rotary switch
ECO angle of rotation - without and with a rotary switch
In the diagrams above WITHOUT switch is on the LEFT; WITH switch is on the RIGHT;
and the potentiometer terminals are marked A, S and E.

ELECTRICAL SPECIFICATION - UNIQUE TO ECO POTENTIOMETERS

Effective rotation:

Rated Power Dissipation @40°C for ECO potentiometers:

ECO, P16 power dissipating curve
ECO, P16 power dissipating curve

Limiting Element Voltage: 350 V DC for 16mm potentiometers

ECO, P16 maximum working voltage curve
ECO, P16 maximum working voltage curve

Insulating Voltage: 500 V AC for ECO potentiometers

ELECTRICAL SPECIFICATION - COMMON TO ECO, P16 AND P20 POTENTIOMETERS

Conductive polymer (plastic) track (over twice the life of carbon tracks)

Life Expectancy of >20,000 cycles (tested at 30 times per minute)

Insulation Resistance: >= 4 Gohms

Rated Resistance: E3 Series

Tolerance on Rated Resistance: ± 20%

Resistance Laws (Taper):

Resistance law A - Linear
resistance law A (Linear) curve
Resistance law B - Log (Audio)
resistance law B (Audio/Log) curve
Resistance law C - Antilog (Reverse Audio)
resistance law C (Reverse Audio/Anti Log) curve

Linearity

As a basis of assessing Linearity Tolerance the independent method is the most practical, permitting as it does, the reference curve to be aligned as near as possible to the actual output curve. This avoids the use of the theoretical starting and finishing points, it is normal for the customer to realign the achieved curve with series trimmers at each end of the device if required.
Linearity Tolerance is 4% over the Nominal Resistance range of 1K0 to 1M0. The Linearity Tolerance is measured on at least 70% of the effective rotation range.

Note. In the case of Terminal and Zero-based linearity, both present constraints which increase the manufacturing difficulty and in consequence have an adverse effect on the product's price and availability.

Potentiometer linearity
potentiometer linearity

Matching Tolerance (For Tandem Stereo Potentiometers)

Tandem Potentiometers have two identical resistor units with the same variation law. The mismatching of the two resistor units, expressed in dB, is measured by the difference between the attenuations introduced by each resistor unit at various points of travel.

Matching tolerance for stereo
matching tolerance for stereo

Operating Temperature: -25°C to +70°C

Temperature derating curve
temperature derating curve

Temperature Coefficient of Resistance: +300 -500 ppm

This information is supplied in good faith but the customer is politely reminded that it is their responsibility to check the suitability of our products for their particular application, production techniques and processes. Please note that all dimensions are for reference purposes only and, as it is the Company's policy to continuously improve our products, we reserve the right to incorporate changes without notice.
