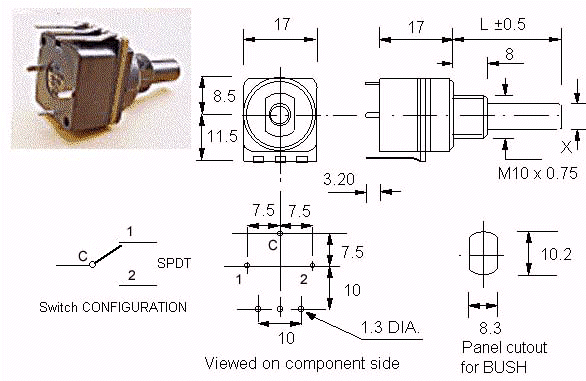

10 Amp SPDT, Push On Push Off 'changeover' switch, mounted on an ECO potentiometer with XA terminals.
(Certified by UL International Demko A/S to EN 61058-1 NOTE This is a European and NOT an American certification.)
Certified by UL International Demko A/S to EN61058-1
Contact rating: 10A/250V AC resistive load
Proof voltage: 3KV min.
Operating temperature: -25°C to +70°C
Housing material: Glass filled polyester
Life: 25,000 (minimum) operations at rated load
Switch operating force: 4 - 6N
Spindle travel: 3mm minimum
PLEASE NOTE: When tightening the nut please ensure the spindle is free to move.
The recommended torque setting for the bush nut on our potentiometers is 45cN.m Torque.
Limiting accessories can be found here
The following options for potentiometer terminals are also available with this switch module
(please refer to photographs of similar potentiometer terminals elsewhere in this website):-
LT - Long bent and towards the spindle
OW - Ordinary wiring (eyelets) - recommended for hand soldering of wires
PC - Printed circuit
