1 Amp Single Pole Switch
Manufactured to EN61058-1 standard
Omeg Potentiometers and Switches can be produced to your requirements using our Product Builder or for special items contact sales
1 Amp Single Pole Rotary Switch mounted on an ECO Potentiometer.
Dimensions representative of range
The Datasheets below show a variety of Potentiometer Terminal options.
Available with black bush mounting upon request
Technical Data:
Switch Specification:
- Manufactured and tested to EN61058-1 standard
- Contact rating: 1A/250Vac 2.5A/12Vdc
- Surge rating (0.01 seconds) 20 Amps
- Contact gap: 3mm (Full mains separation of contacts)
- Proof voltage: 3KV min.
- Housing material: Flame Retardant Glass filled polyester UL 94 VO
- Life: 10,000 (minimum) operations at rated load

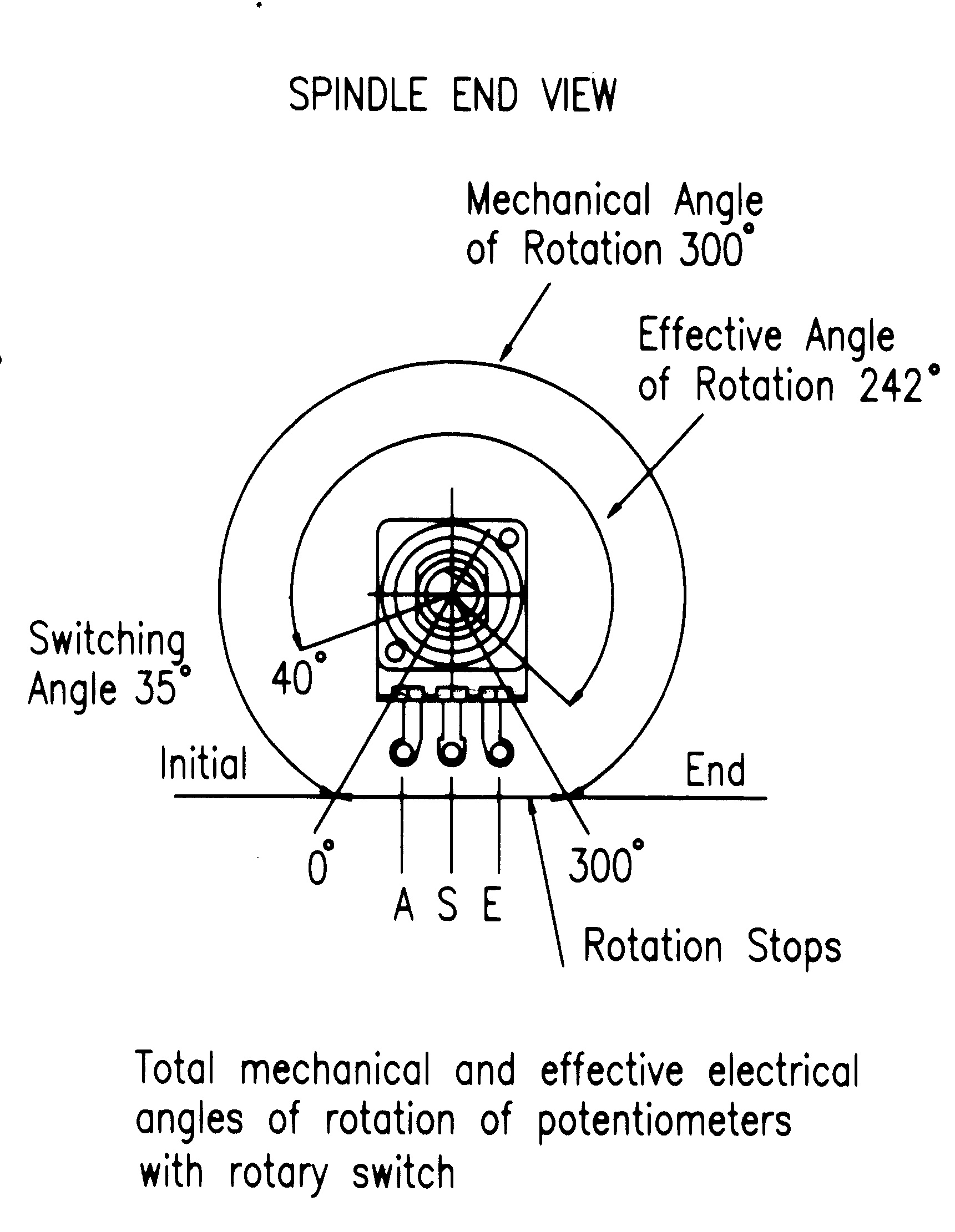

- Mechanical rotation: 300°
- Operating torque: 1.5 – 6 N.cm (dependent on switch selected)
Our Rotary Switch has previously been Certified by UL Demko and these Certificates are available here.
(NOTE: This was a European and NOT an American certification.)
All Switch modules have the option of either PC Terminals for Printed Circuit Boards or OW Terminals for soldering.

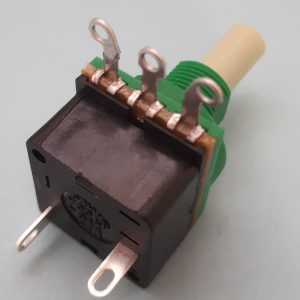

B1OW1S – 1 Amp Single Pole Switch
OW – Ordinary Wiring Terminals for Soldering on Switch
PC – Printed Circuit Terminals on Potentiometer
B1PC1S – 1 Amp Single Pole Switch
OW – Ordinary Wiring Terminals for Soldering on Potentiometer
PC – Printed Circuit Terminals on Switch

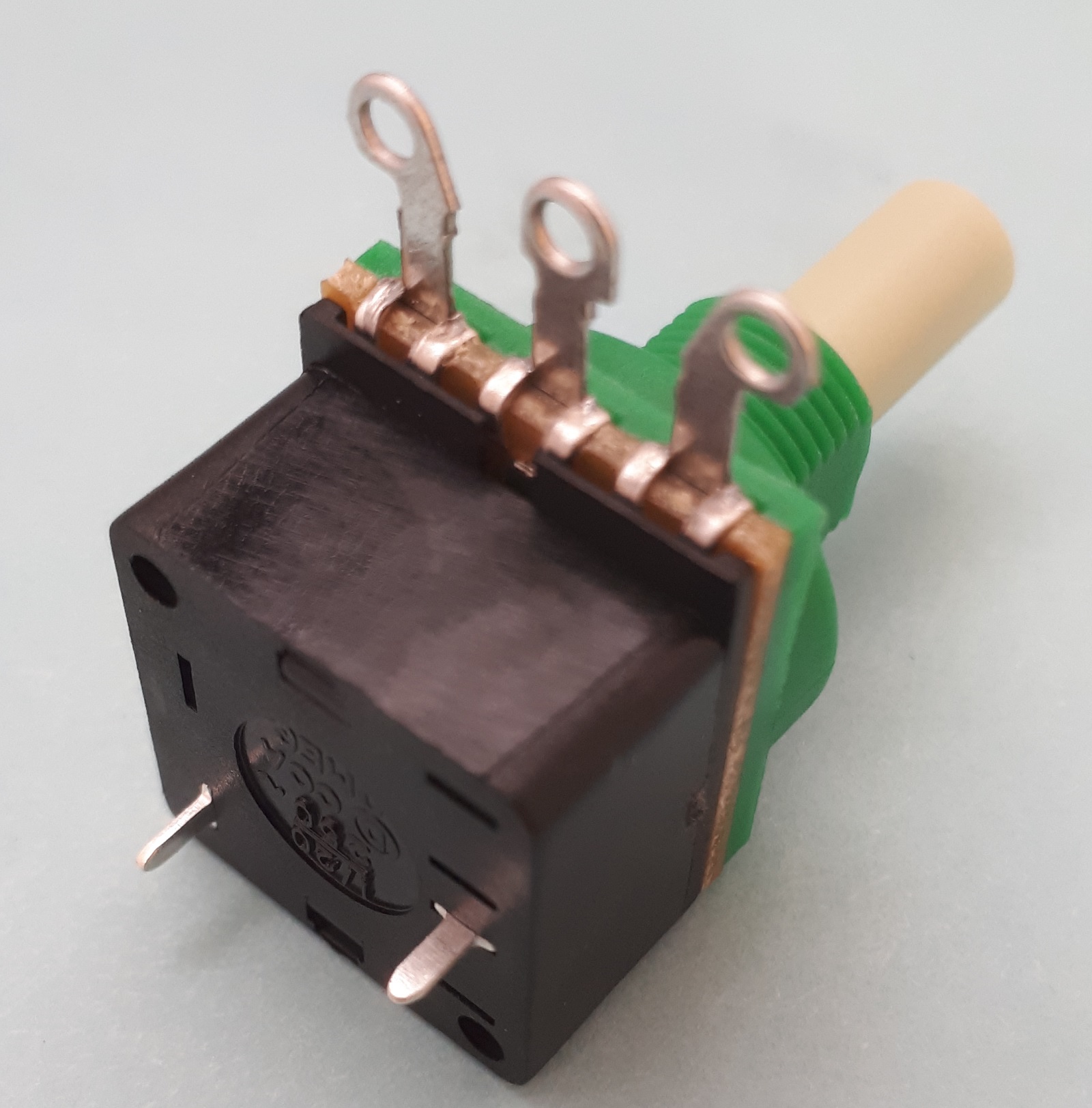

B1OW1S – 1 Amp Single Pole Switch
OW – Ordinary Wiring Terminals for Soldering on Switch and Potentiometer
B1OW1S – 1 Amp Single Pole Switch
OW – Ordinary Wiring Terminals for Soldering on Switch

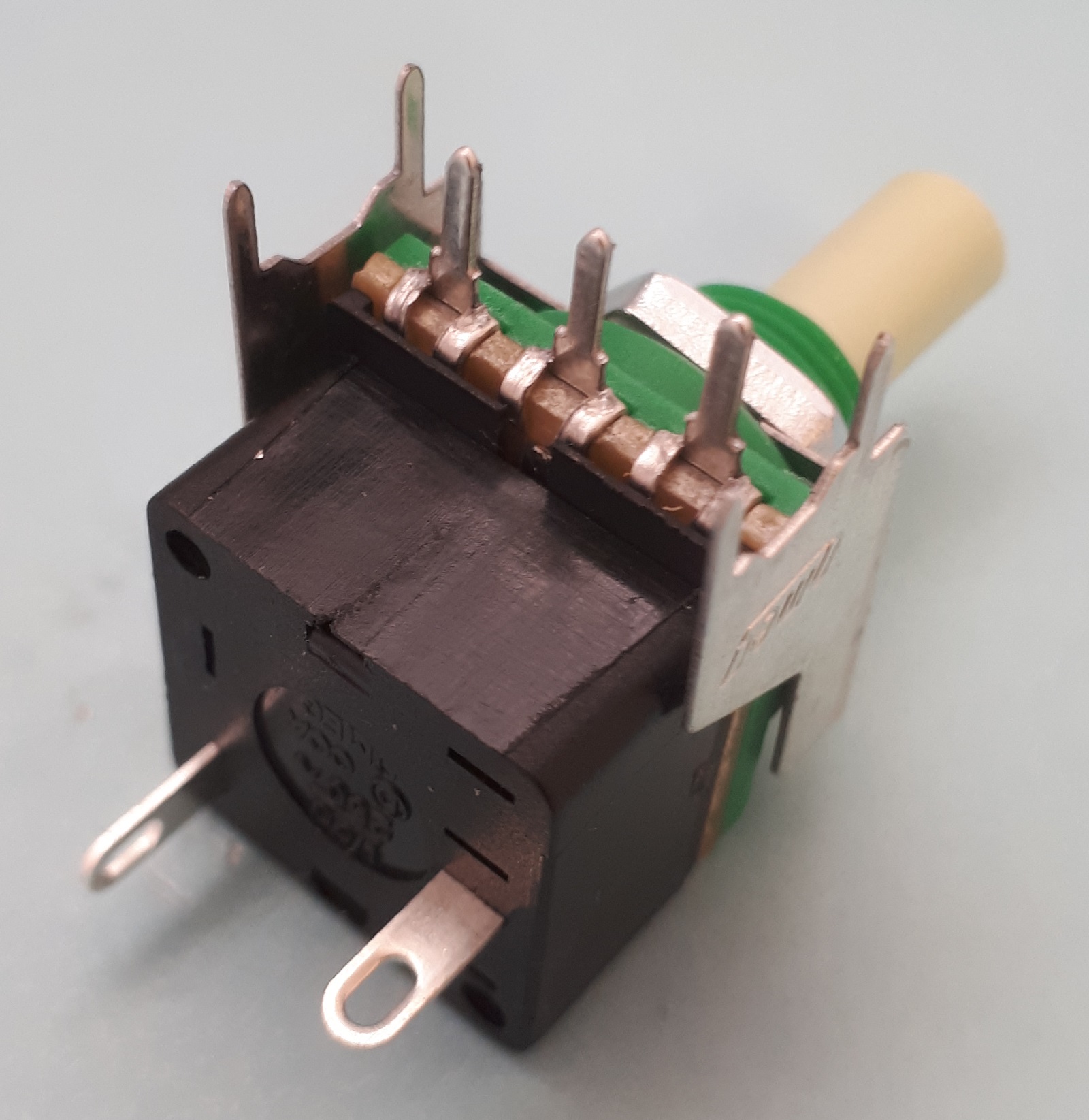

BR – Bracket with PC Terminals on Potentiometer

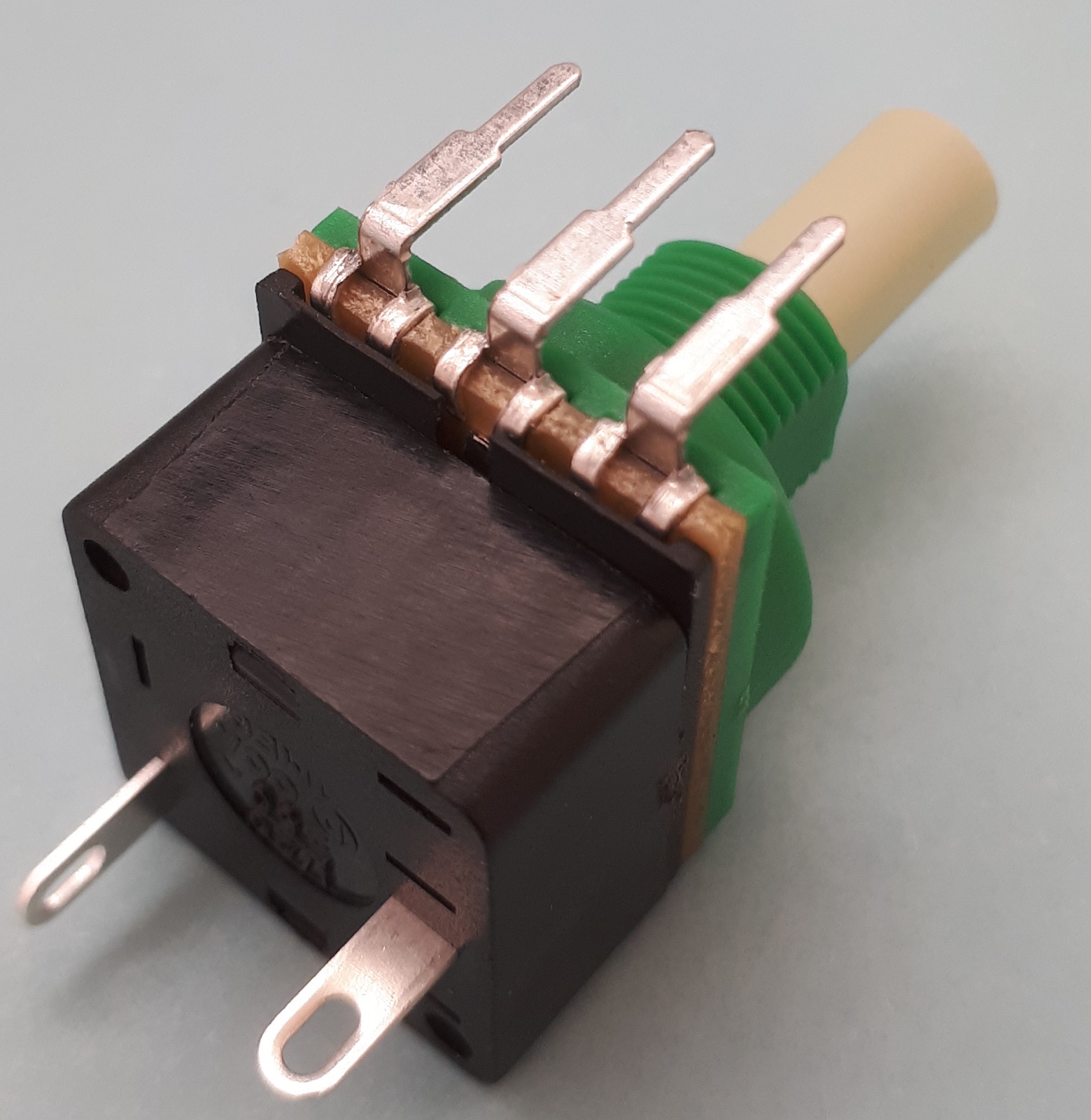

B1OW1S – 1 Amp Single Pole Switch
OW – Ordinary Wiring Terminals for Soldering on the Switch
LT – Potentiometer Terminals Bent Long Toward Spindle

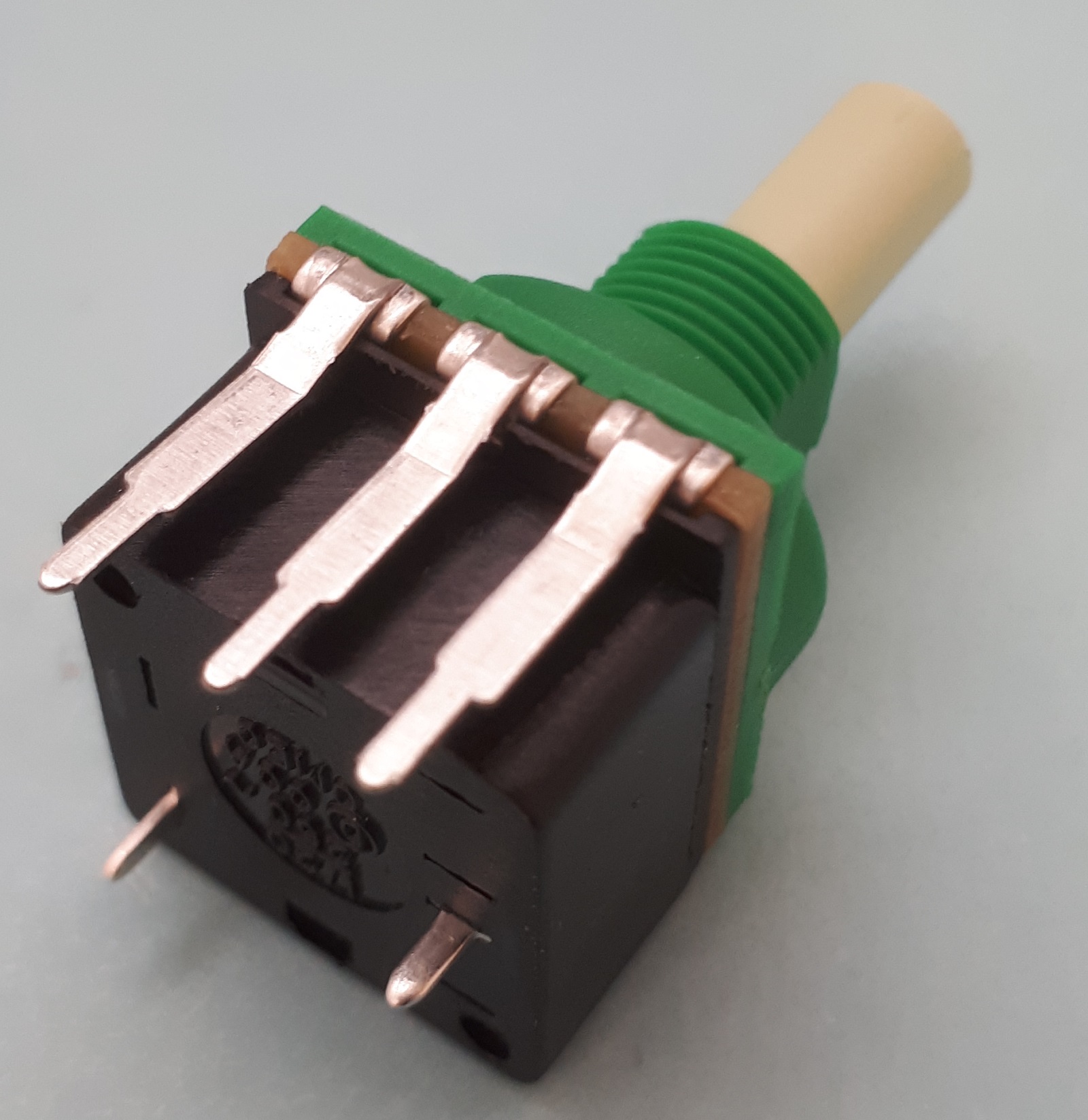

B1PC1S – 1 Amp Single Pole Switch
PC – Printed Circuit Terminals on Switch
XA – Potentiometer Terminals Bent Extra Long Towards Switch
